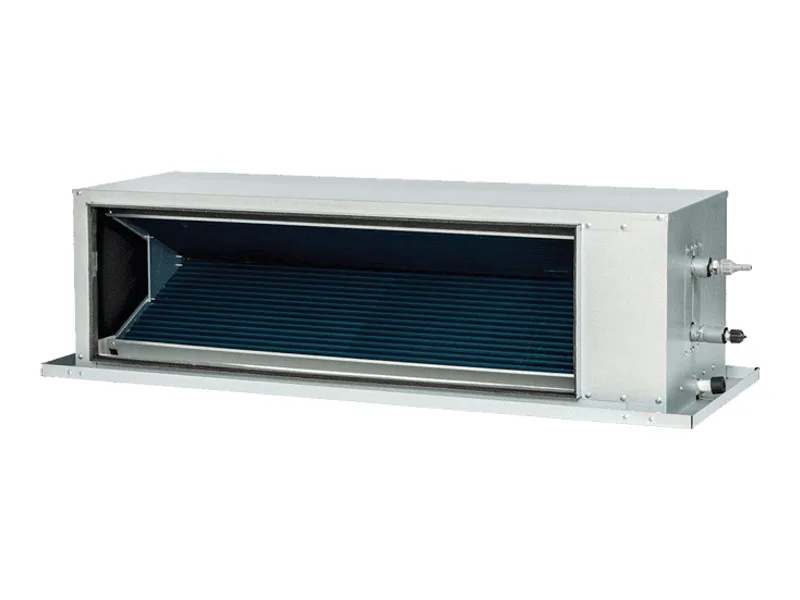

Braemar 12.7 kW ducted system
$8,000–$15,000
estimated installed price
Cooling
12.7 kW
1.5 stars
Heating
None
Cooling only
Indoor noise
–
dB(A) sound power
Running cost
$547
a year, average zone, at 33c/kWh
Short answer
The Braemar 12.7 kW ducted system (KCHV140D1B/KACV140D1S) is a 12.7 kW cooling-only ducted rated 1.5 stars for cooling in the average climate zone. Installed, expect $8,000 to $15,000; the label's figures put running costs near $547 a year in an average-zone home.
Prices are estimates, not quotes (how we estimate them). Rebate rules checked September 2026.
Compare 3 quotes for my houseFull specifications
- Brand
- Braemar
- Model numbers
- KCHV140D1B/KACV140D1S
- Type
- Ducted, cooling only
- Cooling capacity
- 12.7 kW
- Cooling power input
- 3.96 kW
- Annual efficiency, cooling (AEER)
- 3.18
- Indoor sound power
- –
- Outdoor sound power
- –
- Refrigerant
- R32
- Power supply
- Single-phase
- Demand response capable
- Yes
- Country of manufacture
- Australia, China
- Energy Rating registration
- AAC7239
- Registration valid until
- 2028-01-26
Star ratings and running cost by climate
The Zoned Energy Rating Label rates each unit for three climates. Annual energy is the label's estimate for typical use in that zone; the cost applies 33c/kWh, around the 2026–27 default electricity offer. Use the running cost calculator for your own hours and tariff.
| Climate zone | Cooling stars | Energy a year | Cost a year |
|---|---|---|---|
| HotBrisbane, Darwin | 1.5 stars | 4,916 kWh | $1,622 |
| AverageSydney, Adelaide, Perth | 1.5 stars | 1,659 kWh | $547 |
| ColdCanberra, Hobart, Melbourne | 1.5 stars | 1,096 kWh | $362 |
How it compares with other 10 to 14 kW units
- Cooling stars (average zone): 1.5 against a median of 1.5 across 14 10 to 14 kW ducted units, better than 0% of them.
- Estimated installed price for this size: $8,000 to $15,000. Brand and install difficulty move it within that band.
See the quietest and most efficient rankings.
Alternatives at 10 to 14 kW from other brands
Bonaire 12 kW ducted system
CRC6940012/CRC6940112
3 stars cooling · – dB(A)
Bonaire 14 kW ducted system
CRC6940014/CRC6940114
3 stars cooling · – dB(A)
ActronAir 12.2 kW ducted system
CCA130S / EAA130S
2 stars cooling · – dB(A)
Lennox 10.3 kW ducted system
TSA036S4N42T/CH33-36B-2F-3
1.5 stars cooling · – dB(A)
Lennox 11.4 kW ducted system
TSA048S4N43T/CH33-44/48B-2F-3
1.5 stars cooling · – dB(A)
Lennox 13.4 kW ducted system
TSA048S4N42M/CH33-44/48B-2F-3
1.5 stars cooling · – dB(A)
FAQ
Braemar KCHV140D1B/KACV140D1S: common questions
How much does the Braemar 12.7 kW ducted system cost installed?
Typically $8,000 to $15,000 supplied and installed in 2026 for a standard job at this size. Longer pipe runs, a new circuit, a second storey or removing an old unit add to it. Get up to three local quotes for your actual install.
How much does the Braemar 12.7 kW ducted system cost to run?
Using the energy label's annual figures at 33c/kWh: about $1,622 a year in a hot zone, $547 in an average zone and $362 in a cold zone. The label assumes typical use; yours will differ with hours, set temperature and insulation.
Where is the Braemar KCHV140D1B/KACV140D1S made?
The Energy Rating register lists the country of manufacture as Australia, China.
